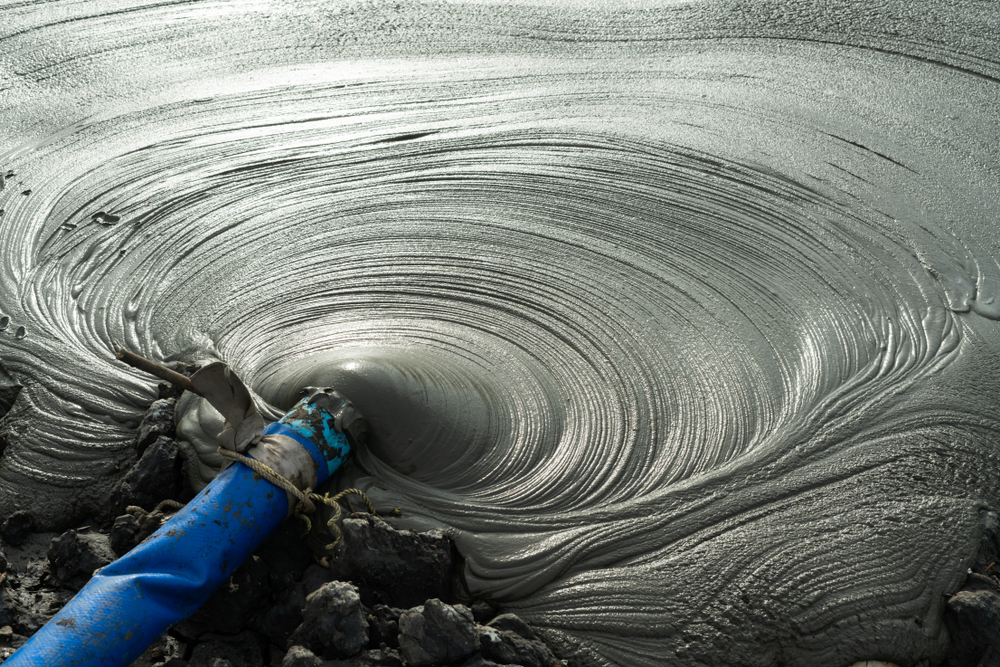

Types of drilling mud

• Clay that uses water to prepare it. WATER BASE MUD
• A clay that uses oil to prepare it. OIL BASE MUD

The first type

LOW SOLID MUD

• Oil in a solution of water
• Salty water with starch
• Water is not salty with bentonite and CMC
• polymer

NHIBITIVE MUD

• Clay with salt saturated water
• Mud with salty water
• FCL - CL
• Clay treated with calcium

The second type

• Clay containing (20-25)% water
• Clay containing (3-5)% water

CHEMICAL PROPERTIES OF DRILLING MUD

• Clay weight (density)
  It is measured in units of pounds / gallons, gm / cm 3, pounds / foot 3, as well as pounds / inch 1000 feet (pressure gradient). The device that measures density is called a mud balance (MUD BALANCE).
• The apparent viscosity (MARSH FUNNEL VISCOSITY) , which is the time in seconds required to fill a volume of (946 cm 3) through the Marsh funnel, measured in seconds (SECOND).
  Note: The measured viscosity of water is 26 sec.
• FILTRATION LOSSES & MUD KAKE
  It is meant by the amount of water (cm3) filtered through a porous paper (FILTER PAPER) after applying pressure on a clay sample of (100) Pa/Ing 2 in a period of (30) minutes. The examination is carried out by means of the filter press, as well as by measuring the thickness of the mud cake in millimeters.
  Note: The filter is measured within (7.5) minutes, and the result is multiplied by (2).
• FBasal PH
  It is measured using paper that changes color according to (PH). There is also an electric device.
  Note:
  1. Water is a neutral solution (i.e. not bottomless or acidic) and its PH is equal to (7), as for basic solutions it is between (8-14) and for acidic solutions it is between 1-6
  2. The mud is alkaline because all the chemicals used do not undergo a chemical reaction unless the surroundings are alkaline. Therefore, before starting the threading operations, caustic soda is added to make the surroundings alkaline.
• Sand content
  It is the percentage of the amount of sand present in the excavation mud, measured by a sand content device.
  Note: The percentage of sand allowed for work ranges from (2-3)%, and there are some other important tests, but the five tests mentioned above are the most important tests that are conducted to know the initial properties of clay

Drilling Materials that GTS can supply

• BARITE
  It is a material used to raise the weight of clay up to (2.6 g / cm 3), and (GALENA) is used for high weights
• BENTONITE
  A substance used to increase viscosity and gelatinous strength and reduce water infiltration. Bentonite is characterized by a hydration ability, and it is known that salts affect the ability of bentonite to hydrate, so another substance is used with it to give the clay sufficient viscosity. and it's called
  By (ZEOGEL) or with (SALT CLAY) and added in a ratio of (1-1) or (3-1) to Benyonite
• CARBOXYL METHYL CELLULOSE (CMC)
  It is an organic substance used to control the leaching of water from mud, and it is of three types:
  1. High Viscosity (CMC-HV)
  2. Average Viscosity (REGULAR)
  3. Low viscosity (LV)
• ORIGIN (STARCH)
  It is a reducing material for filtration of liquids, especially in slurries with salt water and saturated with the plate. This material is used when the concentration (230,000 parts / million) and above and the basicity of the slurry is more than (11.5).
• BRIXEL
  As well as [XP-20, SPERSENE, Q - BROXEN] These materials neutralize the ions formed on the surface of the bentonite particles or any other clay material, and this helps the spread of materials and not collect them, as the agglomeration becomes agglomerated.
• SODIUM CARBONATE (SODA ASH)
  It is used to get rid of the effect of calcium ion (CA++) on clay. The calcium ion comes during the drilling of the layers (anhydrides, and gypsum), as these materials reduce (PH) and raise the viscosity and gelatinous strength.
• SODIUM BICARBONATE (SOD. BEC.)
  It is used to precipitate calcium ion in case of clay contamination with cement.
• CAUSTIC SODA (COSTIC SODA)
  An incendiary chemical that controls the alkalinity of clay (PH) and it is one of the important materials that is used by primary mixing to prevent the aggregation of particles and raise the viscosity, as well as the dissolution of the two compounds in the two materials.
• LUBRICANTS (LUBRICANT)
  Such as crude oil, gas oil or diesel.
• PAC LV
• XANTHAN GUM
• PAC R
• PHPA
• SULPHONATED ASPHALT
• KCL
• SILICONE DEFORMER
• CACO3 M
• CACO3 C
• MICA M
• MICA F
• NUT PLUG-F
• NUT PLUG-M
• DRILLING DETERGENT
• CMC

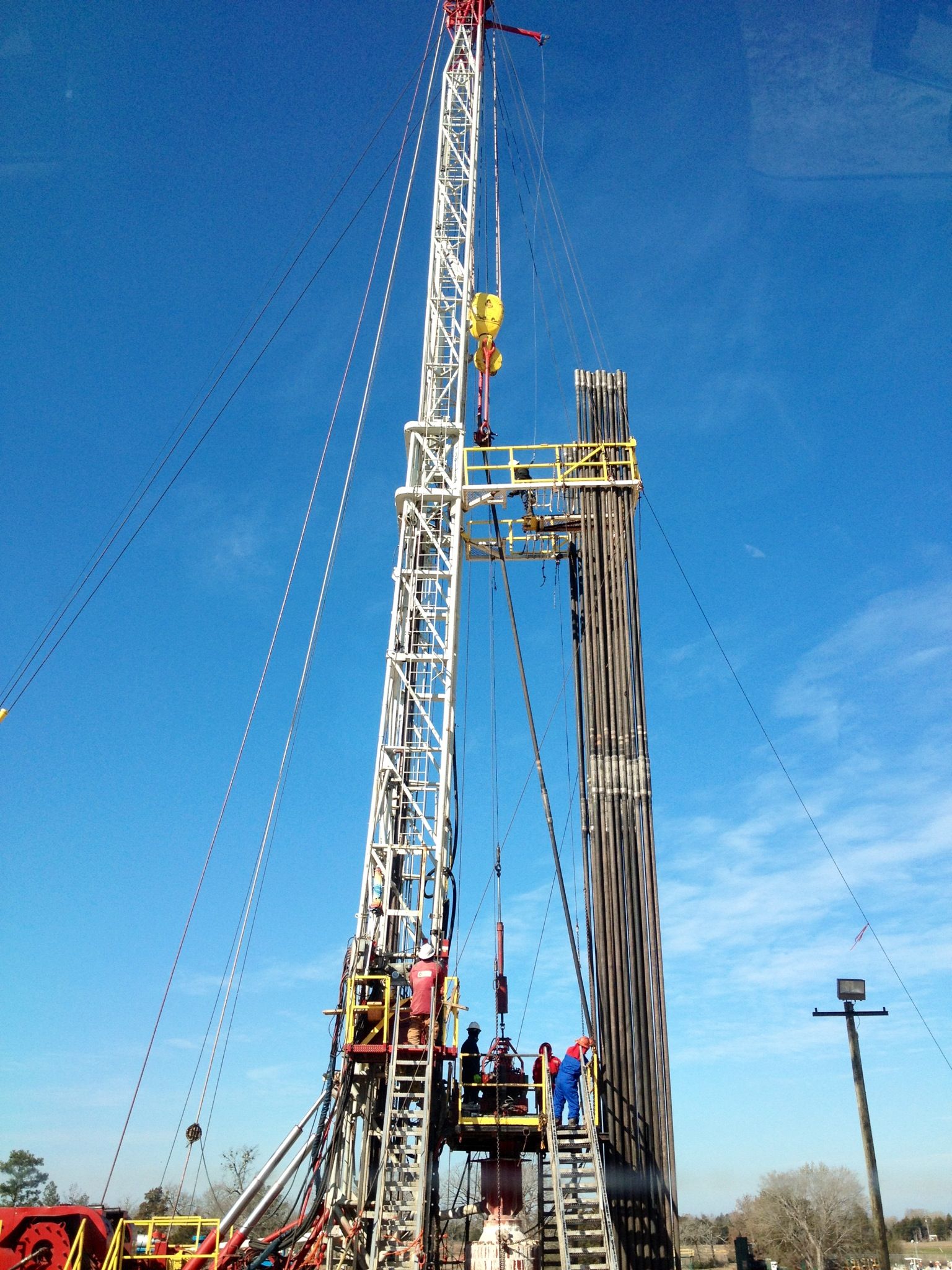

Land rigs

• GTS offers a complete service package for drilling and workover rigs in oil and gas applications, including current repairs, preventive maintenance programs and consulting services.
• Our highly skilled field engineers are capable of troubleshooting and executing in-field repairs on various rig types such as standard land rigs, mobile rigs, winterized rigs, fastmoving desert rigs and other. Reliable service and trusted experience is the cornerstone of everything that we do.
• Since a drilling/workover rig is a major investment in time and money, it is important to keep it operating properly . GTS is available to assist with rig superstructure and substructure repair and upgrade work , bringing equipment . These services save our clients money and keep their operations up and running without interruption
• We offer services such as machining, painting, blasting, fabrication, electrical work and mechanical repairs on: derrick, mast and crown block assembly structures, substructures, engines, transmissions, drilling equipment (e.g. draw works, rotary system components, mud pumps, etc), hoisting equipment (e.g. sheaves, bearings, travelling blocks, hooks, swivels, wireline anchors, etc). Our technicians are experienced, competent and highly trained in various kinds of drilling /workover rig repair work , enabling GTS to provide superior service with each project . Clients can rely on GTS for their repair needs , no matter what type of rig

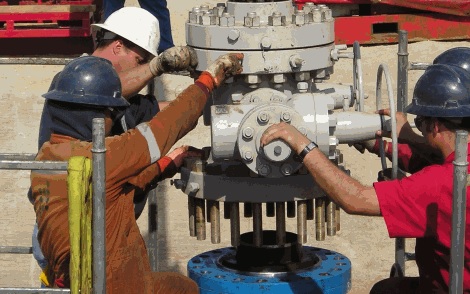

Wellhead Supply

• GTS started our business providing wellhead Installation and servicing. Today, as we head toward nearly several years of trading, GTS Is still directly Involved in our wellhead business and his knowledge is embedded in our team.
• As a result, we have experience of completing surface wellhead installation projects all over the world — using many variations of equipment from all the major manufacturers.
• Assuring wellhead installation success... To ensure that your projects are completed successfully and meet their environmental mandate, we offer trained and fully competent personnel who have both on- and offshore experience.
• Assuring wellhead installation success... To ensure that your projects are completed successfully and meet their environmental mandate, we offer trained and fully competent personnel who have both on- and offshore experience.
• Assuring wellhead installation success... To ensure that your projects are completed successfully and meet their environmental mandate, we offer trained and fully competent personnel who have both on- and offshore experience.
• Typical routine wellhead maintenance tasks we perform include: Lubricate/seal and function test gate valves Pressure test gate valves Function and pressure test valve actuators Pressure test casing/tubing hanger voids Service swab cap Record annulus pressures Record general wellhead condition (paint, corrosion, etc.)
• The extensive suite of fieldproven tools and services provided by GTS enables us to provide robust and safe support for surface wellhead replacement, maintenance or repair procedures
• Removing old or damaged wellhead equipment, providing on-site tooling and service and Installing new parts - or full wellheads - Is all part of our scope of supply
• RA GTS service technician working on a wellhead replacement job In the Middle East. Unique surface wellhead replacement capability... Unique to GTS is the ability to rapidly design and manufacture replacement or retrofit parts, or simply supply complete new wellhead systems - without the long lead times of other suppliers.
• Being independent from major wellhead suppliers also means we can service a variety of different equipment and manufacturer interfaces, thus ensuring flexibility for our clients. This service includes hot tapping, cold cutting, wellhead services and the supply or sale of tools to support the repair / replacement process . Naturally GTS provides experienced personnel to run all of our tools and services. Surface wellhead replacement from GTSbenefits from our experience of working with the wellhead equipment of every major manufacturer - and our own wellhead design and supply business

Why choose GTS?

• We're agile - All of our designs can be rapidly modified to your casing configuration or material specification.
• We're independent - GTS is not tied to one manufacturer or system. We can therefore provide equipment for applications or interfaces not covered by other manufactures. Or, as is often the case, we can build to connect interfaces between different manufacturers equipment.
• We're flexible - Unlike other manufacturers we won't force toward a standard product if it's not suitable for your project.
• We're faster - Our close links with fabricators mean we can reduce your Wellhead lead time by weeks.
• We have experience - Our team has worked with Wellheads for several years and will ensure you get the optimal system for your application.

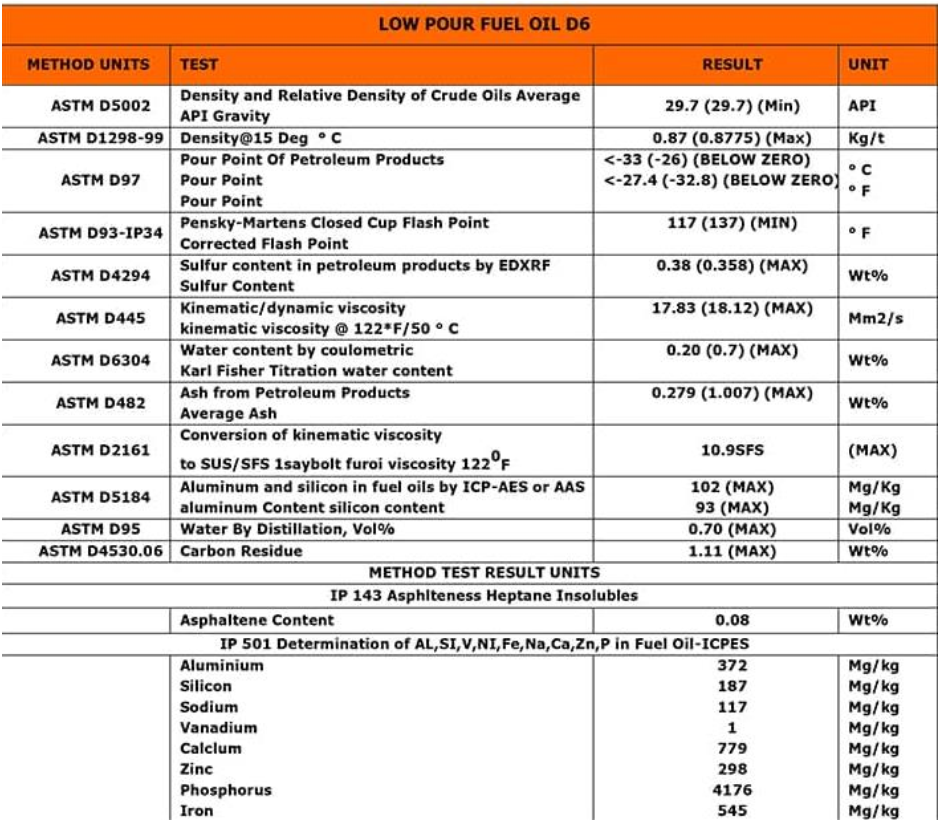

Diesel Gasoil D6

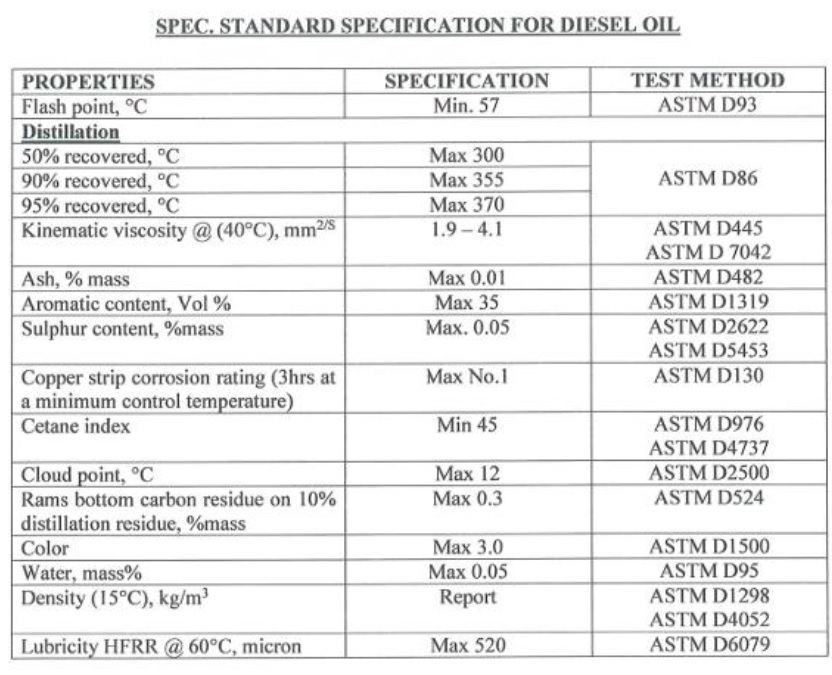

Diesel Gasoil D2
